Rockwell 8R and varieties

Rockwell 8R
Inside Rockwell 8R

Rockwell 8R and varieties.

Distinctive features: A popular, low-cost, calculator from the Rockwell range.

Technical details:
Display is 8 digits, red LED.

4-function, %.

9v (PP3 battery).

Integrated circuit - Rockwell B5000.

62 x 92 x 22 mm (2.4" x 3.6" x 0.9").

1975.

Made in U.S.A., Mexico, Hong Kong.

Popular low-cost calculator.

Versions were produced with different case styles for other companies. All have the characteristic domed keys.

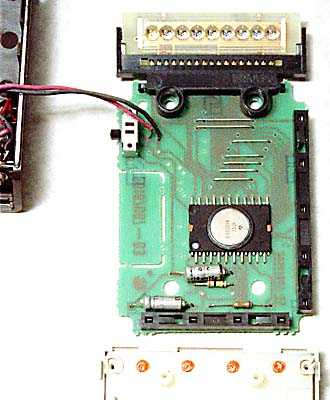

Inside the Rockwell 8R, showing the small number of components.
In early versions the keyboard plugs into the circuit board using the black sockets on the right and bottom edges.
However these are expensive so in later versions the keyboard is soldered to the circuit board.

Varieties

Rockwell 9TR
Radio Shack EC-220

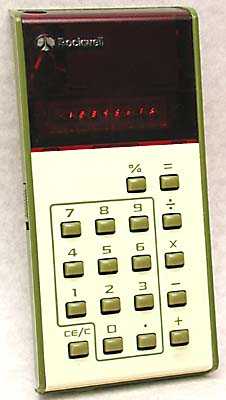

Rockwell 9TR
This version was made for sale in True Value hardware stores in the U.S.A.

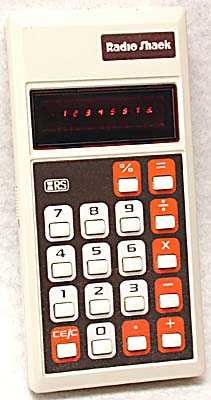

Radio Shack EC-220
This version was made for sale through Radio Shack electronics stores and catalogues in the U.S.A.

House of Fraser 8F

House of Fraser 8F
This version was made for sale in House of Fraser department stores in the U.K., with its stag's head logo.
House of Fraser also had other Rockwell models re-badged for them but retaining the Rockwell case. Click on the picture to go to the House of Fraser page.

There are other examples of Rockwell hand-held calculators in the Photograph Library.

Further information about Rockwell can be found in the Calculator Companies section.
